    Duplex Round Hollow Bar 70mm CD4MCU 25Cr-5Ni-2Mo-3Cu Steel ASTM A890

    Ask Lasest Price
    Brand Name : MITTEL TISCO BAO STEEL
    Model Number : CD4MCU
    Certification : ISO,BV,SGS
    Price : 3.15 USD/KG
    Payment Terms : L/C, T/T
    Supply Ability : 50000KGS
    Delivery Time : 7 Days
    • Product Details
    • Company Profile

    Duplex Round Hollow Bar 70mm CD4MCU 25Cr-5Ni-2Mo-3Cu Steel ASTM A890

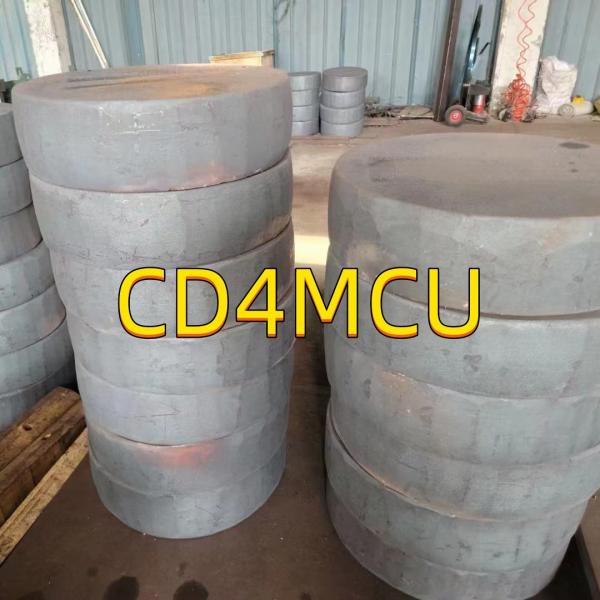

    Round Hollow Bar (Ring) 370 x 340 x 70 mm CD4MCU Duplex Hollow Steel Bar ASTM A890 Gr.1A


    MATERIAL DATA SHEET - Grade CD4MCu


    MATERIAL CATEGORY - Duplex stainless steel - 25Cr-5Ni-2Mo-3Cu
    MATERIAL SPECIFICATIONS - ASTM A959 (2004), A276, A312, A632, A176, A580, A564
    CHEMICAL COMPOSITION (WEIGHT %)
    C (%): ≤ 0.04
    Si (%): ≤ 1.00
    Mn (%): ≤ 1.00
    P (%)≤: 0.040
    S (%)≤: 0.040
    Ni (%): 4.75 ~ 6.00
    Cr (%): 24.5 ~ 26.5
    Mo (%): 1.75 ~ 2.25
    Cu (%): 2.75 ~ 3.25

    MECHANICAL PROPERTIES FINAL HEAT TREATMENT

    Condition: solution, annealed
    Tensile strength, σb/MPa: ≥ 689
    Yield strength, σ0.2/MPa: ≥483
    Elongation, δ (%): 16.0
    Reduction of area, ф (%): -
    Hardness | HRB: 94RB ~ 27RC

    Stainless Steel Rod, Bar, Wire, Cold drawn, ground and polished

    Standard length of bars: 2 - 3 meter.

    Austenitic Stainless Steel for implants, with high corrosion resistance.

    According to ISO 5832/1, F-138 Vacuum melt grade (VAR)

    For surgical instruments, fracture fixation devices, screws for implants and many more similar applications.

    PRODUCT DESCRIPTION
    The alloy is usually produced by AOD / VOD /VIM followed by electroslag refining (ESR) / VAR if necessary for special purpose.
    Bars and, where applicable, forgings are subjected to ultrasonic examination based on the different levels according to the buyers' requirements.
    Bars are usually supplied black/bright in the annealed condition.
    Final heat treatment - solution treatment / QT
    TYPICAL APPLICATIONS
    Chemical equipment
    Mechanical parts used in the condition of corrosion resistance
    Bolt and nut
    Pressure vessel

    PRODUCT PROFILE & FORMS
    Round bar / Wire rod (Diameter): 5.5mm to 550mm
    Square bar / Flat bar: 3mm to 1000mm
    Plate / Sheet steel / Steel strip: 0.1mm to 1000mm
    Width: 8mm to 1000mm
    Length: random length or based on the customer's special requirement.
    Forged steel shape: stepped shafts with flanks / discs /tubes /slugs /donuts /cubes /other different shapes based on OEM.
    TECHNICAL SALES ASSISTANCE
    If you meet further on any technical enquiry, pleased to EMAIL our resident team of qualified production engineers.
